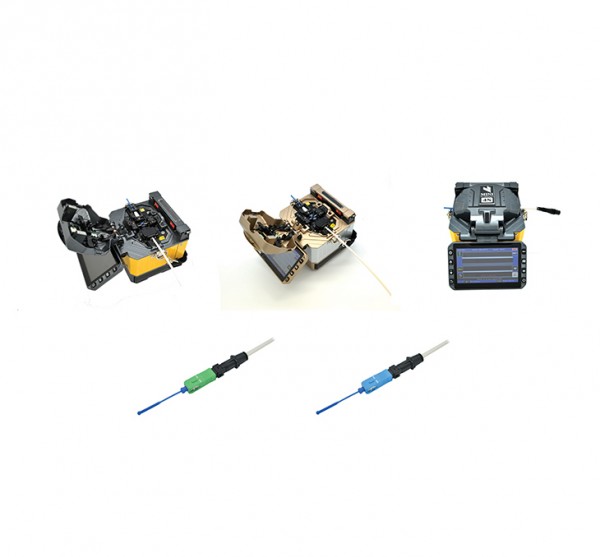

Splice On Connector (SOC)
본문
.
• Compliant with IEX51754-4, KS C6974(F04), JIS C5973(F04)
• Compliant with Telcordia GR-326-core
• Able to terminate the fiber with a connector in the field
• Unnecessary of extra connection as jointing point is located inside of connector
• Higher quality, better insertion loss and return loss
• Easy to assemble with one step system
• Compliant with Telcordia GR-326-core
• Able to terminate the fiber with a connector in the field
• Unnecessary of extra connection as jointing point is located inside of connector
• Higher quality, better insertion loss and return loss
• Easy to assemble with one step system
| Type | Item | SM | MM | |||
|---|---|---|---|---|---|---|
| General Connector | Fiber Type | 9/125 | OM1 | OM2 | OM3 | |
| Insertion Loss | UPC | ≤0.2dB | ||||
| APC | ≤0.2dB | |||||
| Return Loss | UPC | ≤50dB | ||||
| APC | ≤60dB | |||||
| Repeating Test | 500Cycles, ≤ 0.2dB | |||||
| Operation Temp | -45°C ~ 85°C | |||||
| SC | Type of Cable | 0.9mm fiber, 2.0mm, 2.4mm, 3.0mm Cable, 3x2 Indoor Cable | ||||
| Tensile Force | ≥30N[≥3.1kgf]for 3.0mm code or 0.9mm fiber / ≥80N[≥8.0kgf]for 3x2 Indoor Cable | |||||
.
.
